A View may contain one or more visual layers. Each visual layer brings a different element into the visualization.

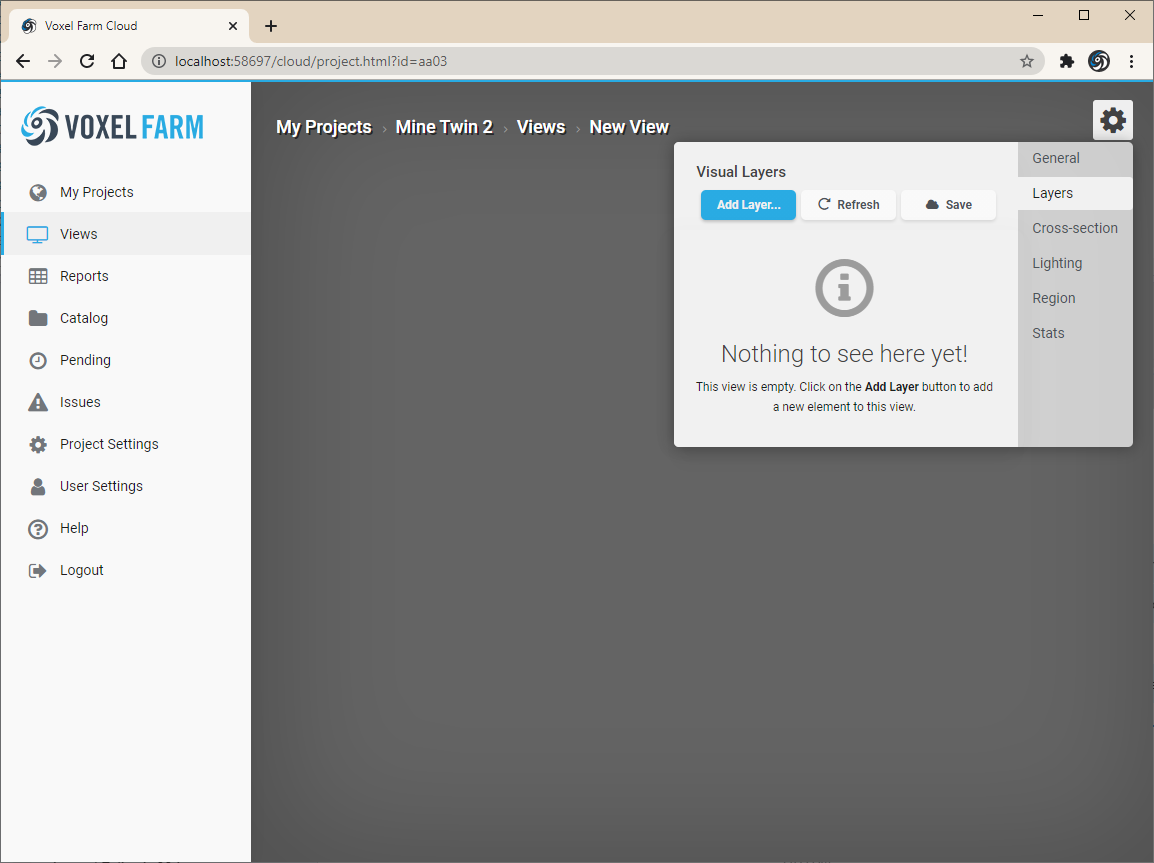

To add new layers to a View, open the View configuration panel, select the "Layers" tab and then click on the "Add Layer..." button:

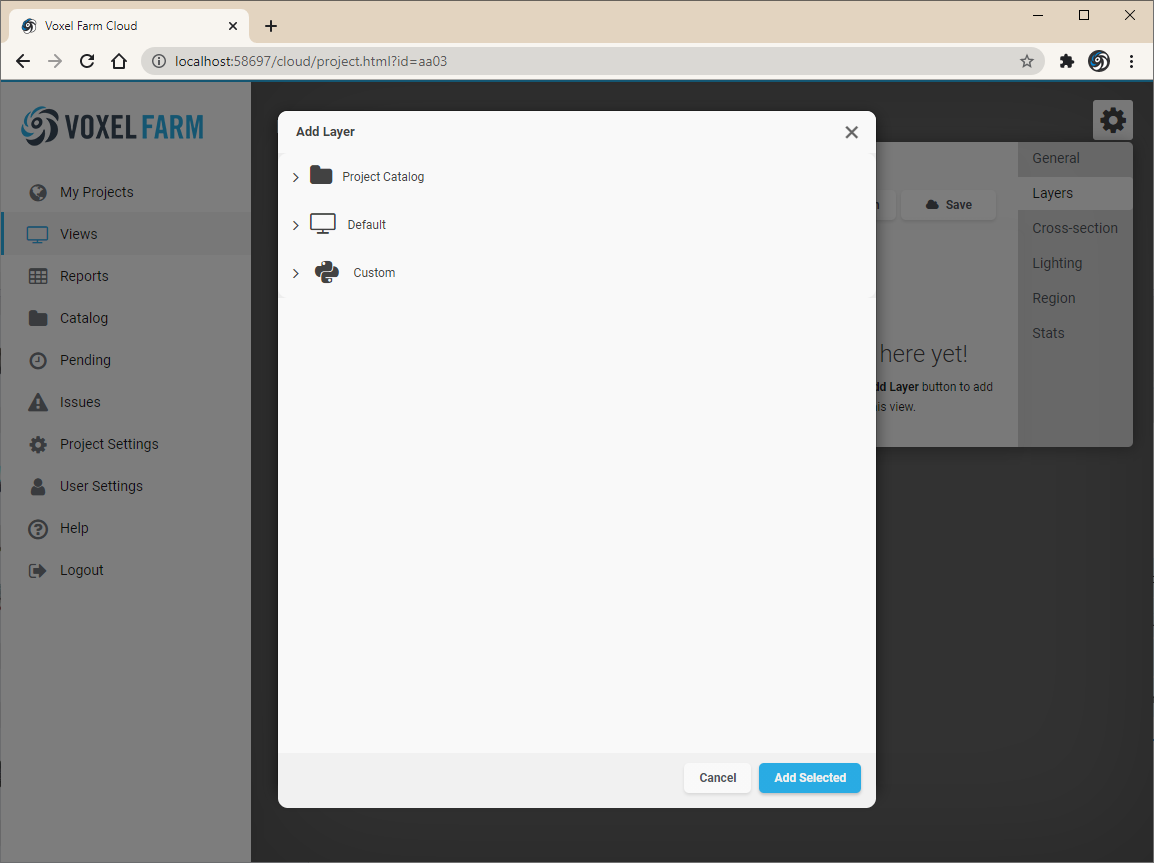

This will open a modal dialog showing the layers that are available for creation. The layers are grouped into three main categories:



  • Project Catalog: This shows the Folder hierarchy in the Project's Catalog and the datasets that are available in the Catalog for visualization.
  • Default: This contains the list of default visual layers offered by the platform.
  • Custom: This contains any custom visual layers. These layers are defined by View Programs somewhere in the Project's Catalog.

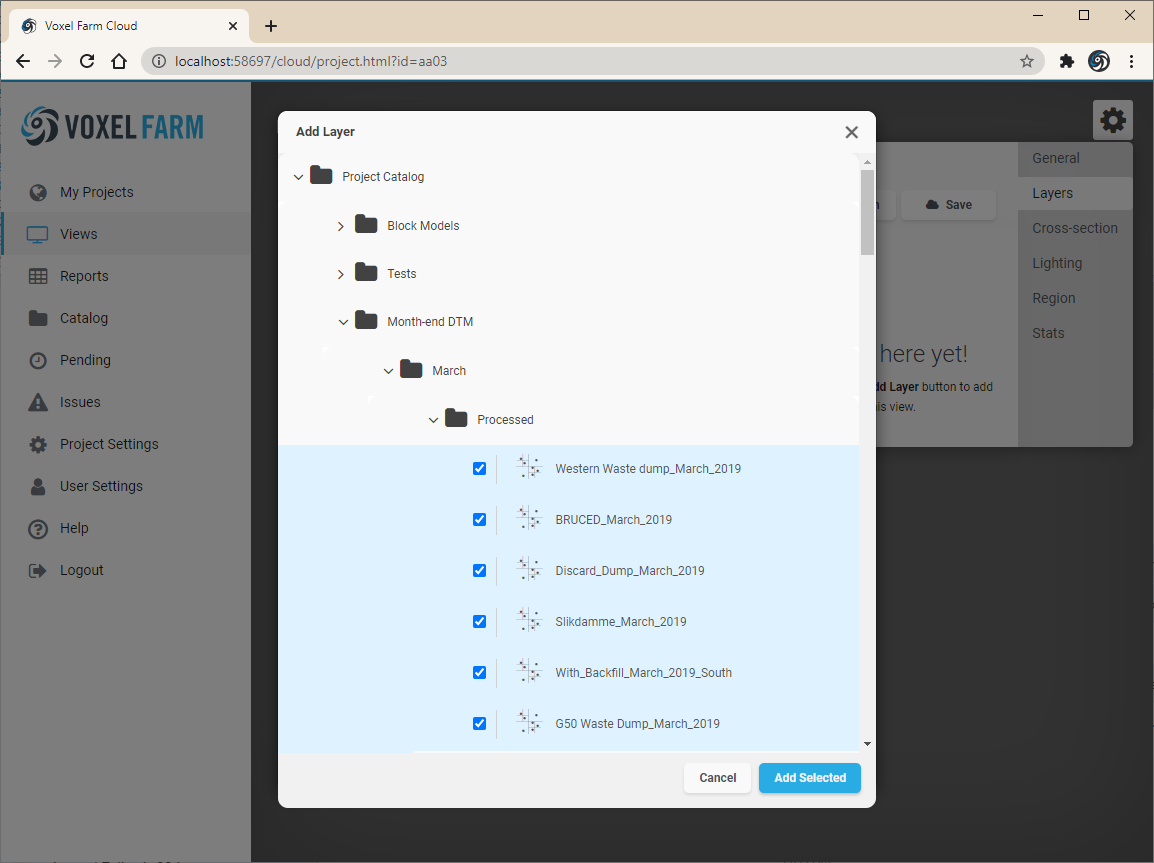

The dialog allows to select more than one layer at the same time. This allows to bring multiple datasets at once into the View:
