The Indexed Mesh entity is the result of applying the project’s spatial index to a raw Mesh entity. Indexed Meshes can be visualized and combined with other forms of spatial data.

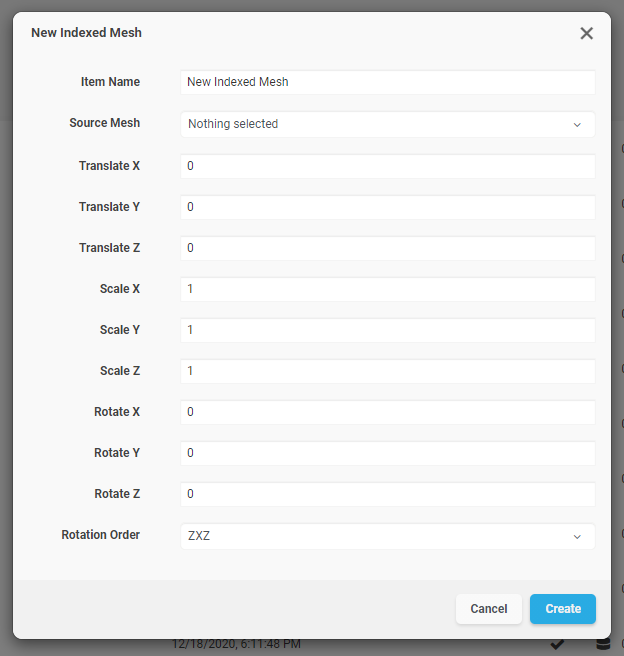

Once you select “Indexed Mesh” from the “Add” menu, you will see the following options:



Item Name

A readable name for the new entity

Source Mesh

Shows a list of available raw Mesh entities. From this list, you can select which raw Mesh will be used to create the Indexed Mesh.

Translate XYZ

These fields allow translating the mesh position by the specified amounts along each coordinate axis

Scale XYZ

These fields allow scaling the mesh by the specified amounts along each coordinate axis. A value of 1.0 represents the original scale

Rotate XYZ

Euler rotation angles for each coordinate axis.

Rotation Order

Euler rotation angle sequence.



Click on “Create” to begin the indexing process. You can track the upload operation from the “Pending” section in the project’s page.


Once the processing is complete, you can view the new entity by clicking on the “View” button in the entity’s row inside the Catalog section for the project. Alternatively, you may create a View entity that uses the newly created entity as a source dataset.
